Advanced Techniques for Polyurea Joint Treatment and Crack Repair

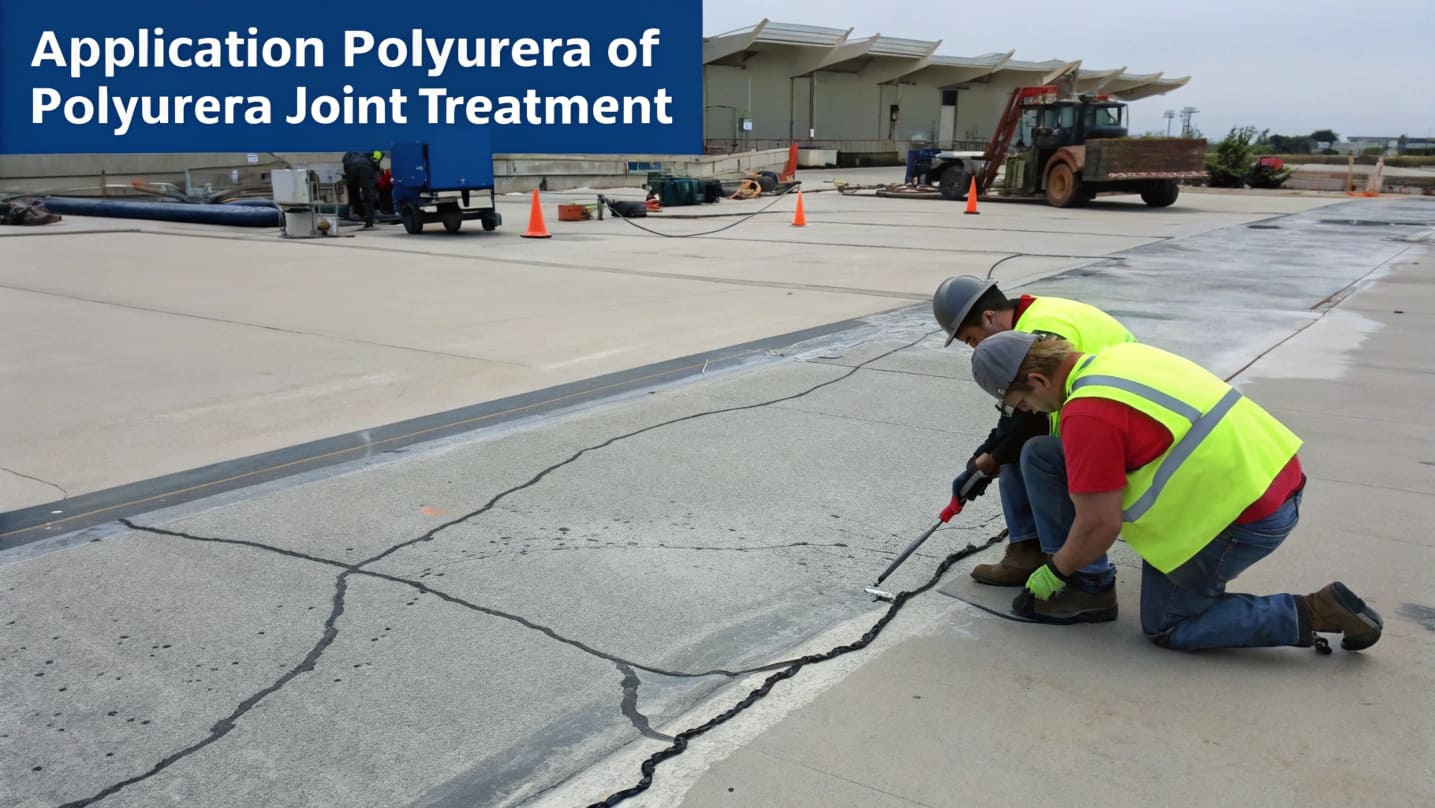

Treating joints and cracks in concrete substrates is one of the most challenging aspects of construction projects. Traditional repair methods fail prematurely, causing costly maintenance cycles and structural integrity issues that worsen over time.

Polyurea joint treatments provide superior crack repair solutions through their exceptional elongation properties (up to 400%), rapid cure times (30-90 seconds), excellent chemical resistance, and ability to be applied in wide temperature ranges (-30°C to 70°C), creating long-lasting, flexible, waterproof joints.

In my 15 years of experience applying industrial coatings, I’ve witnessed a complete revolution in joint treatment technology. The development of advanced polyurea systems has transformed how we approach these critical vulnerability points in structures. Let me share what makes these techniques so effective and how they’re changing the construction and maintenance landscape.

Why Do Traditional Joint Treatments and Crack Repairs Fail?

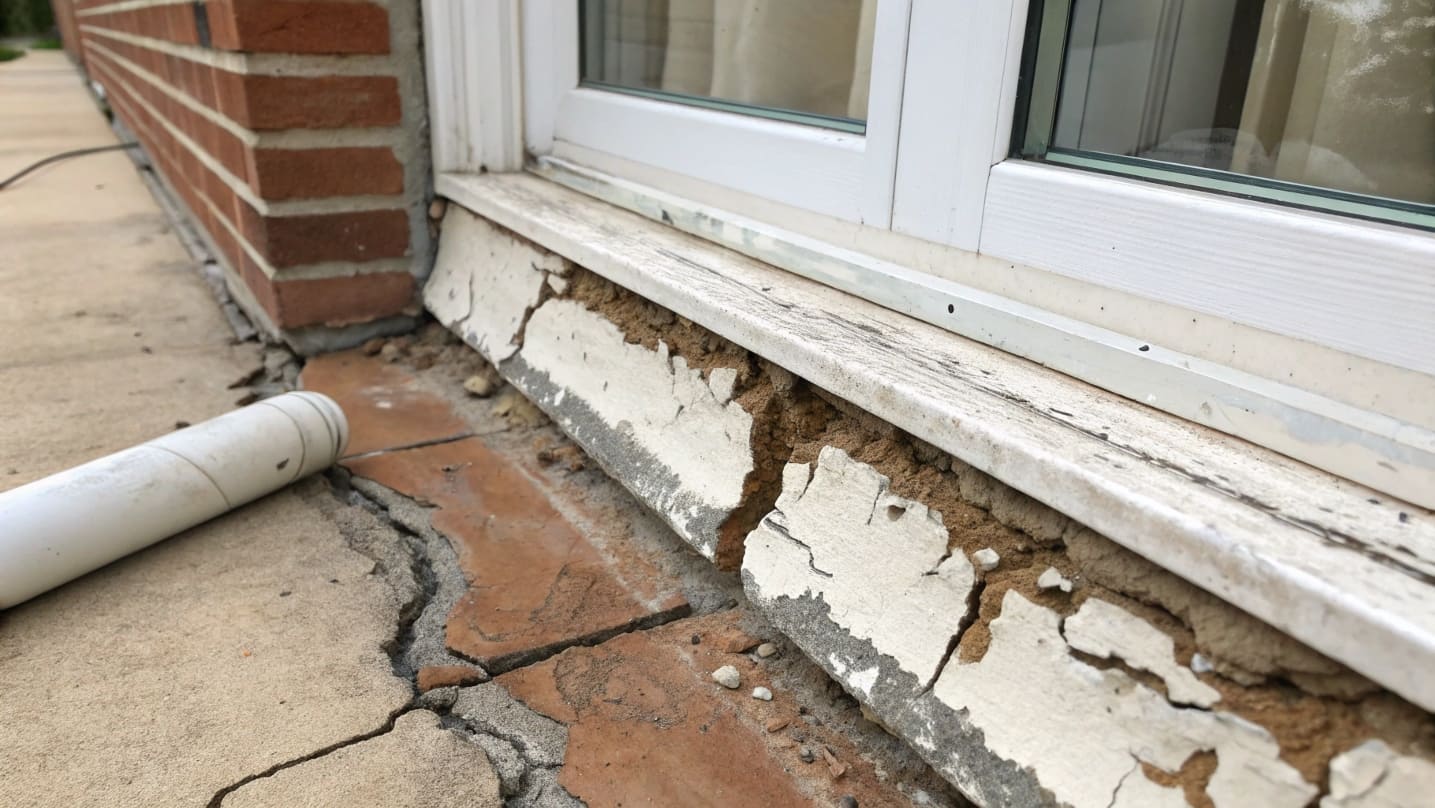

The persistent failure of conventional joint treatments creates ongoing maintenance challenges and structural vulnerabilities that frustrate facility managers and property owners alike.

Traditional joint treatments and crack repairs fail due to insufficient elongation properties (typically only 10-150%), slow cure times that extend project timelines, poor adhesion to varied substrates, vulnerability to moisture during application, limited chemical resistance, and inability to withstand extreme temperatures and UV exposure.

The Fundamental Flaws in Conventional Methods

Working with industrial facilities across Southeast Asia, I’ve documented the consistent failure patterns of traditional joint treatments¹:

Material Limitations

Traditional sealants and caulks suffer from inherent material deficiencies:

Material Type	Primary Limitations	Typical Lifespan
Silicone	Poor abrasion resistance, collects dirt, limited UV stability	5-7 years
Polyurethane	Moisture sensitivity during cure, limited chemical resistance	3-5 years
Epoxy	Brittle nature, poor elongation, cracks with substrate movement	2-4 years
Acrylic	Low durability, shrinkage, poor adhesion to varied substrates	1-3 years
Cement-based	Brittle, porous, lacks flexibility, cracks with movement	1-2 years

These limitations become particularly problematic in industrial environments where joints and cracks are subjected to:

• Extreme temperature fluctuations that cause expansion and contraction
• Chemical exposure from cleaning agents, process chemicals, or environmental factors
• Heavy traffic and mechanical stress
• Prolonged UV exposure in outdoor applications
• Water and moisture infiltration causing substrate deterioration

In a manufacturing facility I consulted for last year, traditional polyurethane sealants² in floor joints required complete replacement after just 28 months due to chemical attack from cleaning solutions and material handling equipment traffic. The frequent replacement cycles created significant operational disruptions and maintenance costs.

Application Challenges

Beyond material limitations, traditional methods present application difficulties:

1. Moisture Sensitivity: Most conventional sealants require completely dry conditions during application, which is often impossible to achieve in real-world settings
2. Temperature Constraints: Limited application temperature ranges (typically 10°C-35°C) restrict installation windows
3. Primer Requirements: Many systems require primers that add complexity and time to installations
4. Cure Times: Extended cure times (24-72 hours) prolong project completion and facility downtime
5. Surface Preparation Complexity: Demanding surface preparation requirements that are difficult to achieve in field conditions

These challenges explain why traditional joint treatments represent one of the highest maintenance cost centers for facility managers. The cycle of failure and replacement creates a continuous drain on maintenance budgets and operational efficiency.

How Does Polyurea Technology Transform Joint Treatment?

The introduction of advanced polyurea systems has revolutionized how we approach joint treatment and crack repair across industrial, commercial, and infrastructure applications.

Polyurea technology transforms joint treatment through instant gelation (1-3 seconds) and rapid cure times (30-90 seconds), exceptional elongation (300-400%), superior tensile strength (>16 MPa), excellent chemical resistance, moisture tolerance during application, and extreme temperature resistance (-40°C to 140°C), providing immediate return-to-service possibilities.

The Polyurea Advantage: Breaking Performance Barriers

As a coating specialist who has implemented polyurea systems in diverse applications, I’ve documented the transformative capabilities of this technology:

Superior Physical Properties

MPU Coatings’ polyurea systems offer exceptional performance characteristics:

Property	Performance	Benefit for Joint Treatment
Elongation	300-400%	Accommodates substantial joint movement without failure
Tensile Strength	>16 MPa	Resists tearing under mechanical stress
Shore Hardness	Adjustable (A40-D60)	Can be formulated for specific application requirements
Gel Time	1-3 seconds	Minimizes material sag in vertical applications
Tack-Free Time	30-90 seconds	Allows for quick progression of work
Return to Service	1 hour	Minimizes facility downtime
Chemical Resistance	Excellent	Withstands exposure to fuels, solvents, acids, and bases
UV Stability	High (with aliphatic formulations)	Maintains properties when exposed to sunlight
Tear Strength	>50 kN/m	Resists propagation of damage
Temperature Resistance	-40°C to 140°C	Functions across extreme temperature ranges

These properties create joint treatments that far outperform traditional solutions in durability and functionality.

Application Versatility

Polyurea systems overcome the limitations of conventional materials through:

1. Moisture Tolerance³: Can be applied to damp substrates without adhesion failure
2. Temperature Range⁴: Application possible from -30°C to 70°C
3. No Primer Requirements: Many formulations bond directly to properly prepared substrates
4. Substrate Versatility⁵: Adheres to concrete, metal, wood, fiberglass, and most construction materials
5. Thickness Control: Can be applied in single passes from 0.5mm to 6mm thickness
6. Vertical Application: Rapid gelation prevents sagging even on vertical surfaces
7. Custom Formulations: Properties can be adjusted for specific project requirements

This versatility enables successful application across diverse environmental conditions and project requirements, making polyurea the most adaptable joint treatment solution available.

What Are the Best Practices for Polyurea Joint Treatment?

While polyurea offers superior performance, achieving optimal results requires adherence to specific preparation and application protocols.

Best practices for polyurea joint treatment include thorough surface preparation (cleaning, profiling to CSP 3-5), proper joint design (width-to-depth ratio of 2:1), use of appropriate backer materials, moisture testing, application at optimal temperatures, equipment calibration, and regular maintenance inspections to identify any issues before they escalate.

The Critical Path: From Preparation to Application

Based on my experience implementing polyurea coating solutions across hundreds of projects, here’s the systematic approach that ensures optimal joint treatment performance:

1. Joint Assessment and Design

Begin with proper evaluation and planning:

• Measure joint width at multiple points to account for variations
• Determine movement expectations based on substrate material and environmental conditions
• Calculate appropriate joint depth (typically 1/2 of width for joints <1" wide)
• Design proper termination details where joints meet walls or other transitions
• Document existing condition with photographs for reference

2. Surface Preparation

Preparation quality directly determines bond strength and longevity:

• Remove all existing sealants, coatings, and contamination
• Abrasive blast or mechanically prepare joint faces to achieve ICRI CSP 3-5 profile
• Create 45° beveled edges at top of joint to reduce stress points
• Thoroughly clean using vacuum systems to remove all dust and debris
• Verify surface pH and moisture content meet manufacturer specifications
• Apply approved primer if required for specific substrate conditions

In a recent warehouse floor project in Singapore, we found that investing 60% of project time in meticulous joint preparation⁶ resulted in zero joint failures after two years of heavy forklift traffic, compared to traditional methods that typically required maintenance within 6-8 months.

3. Backer Material Installation

Proper backing supports optimal joint function:

• Select closed-cell backer rod approximately 25% larger than joint width
• Install at consistent depth to maintain proper sealant thickness
• Ensure backer material doesn’t twist or fold during installation
• Use non-adhering bond breaker tape for shallow joints
• Verify backer material compatibility with selected polyurea system

4. Environmental Controls

Managing application conditions ensures performance:

• Verify substrate temperature is within manufacturer specifications (typically 5°C above dew point)
• Monitor ambient conditions and forecast for application window
• Implement temporary climate control if necessary
• Confirm material temperature is optimal for processing (typically 24-30°C)
• Measure and record all environmental parameters for quality documentation

5. Equipment Setup and Material Preparation

Proper equipment configuration is critical:

• Utilize plural component spray equipment with appropriate pressure ratings
• Select mix chamber and tip size according to manufacturer recommendations
• Verify proper functioning of heating systems and temperature controls
• Conduct pressure balance tests prior to application
• Perform ratio checks to confirm proper material mixing
• Apply material to test area and verify proper cure before proceeding

6. Application Technique

Skilled application ensures joint integrity:

• Fill joint from bottom up to avoid air entrapment
• Maintain consistent application speed to ensure proper coverage
• Apply slightly proud of surface to allow for minimal shrinkage
• Tool joint surface if smooth finish is required
• Create slight crown for joints subject to abrasion or traffic
• Verify continuous film without pinholes or voids
• Allow full cure before exposing to service conditions

These best practices ensure that polyurea joint treatments achieve their full performance potential and maximum service life.

What Specialized Polyurea Systems Are Available for Different Joint Types?

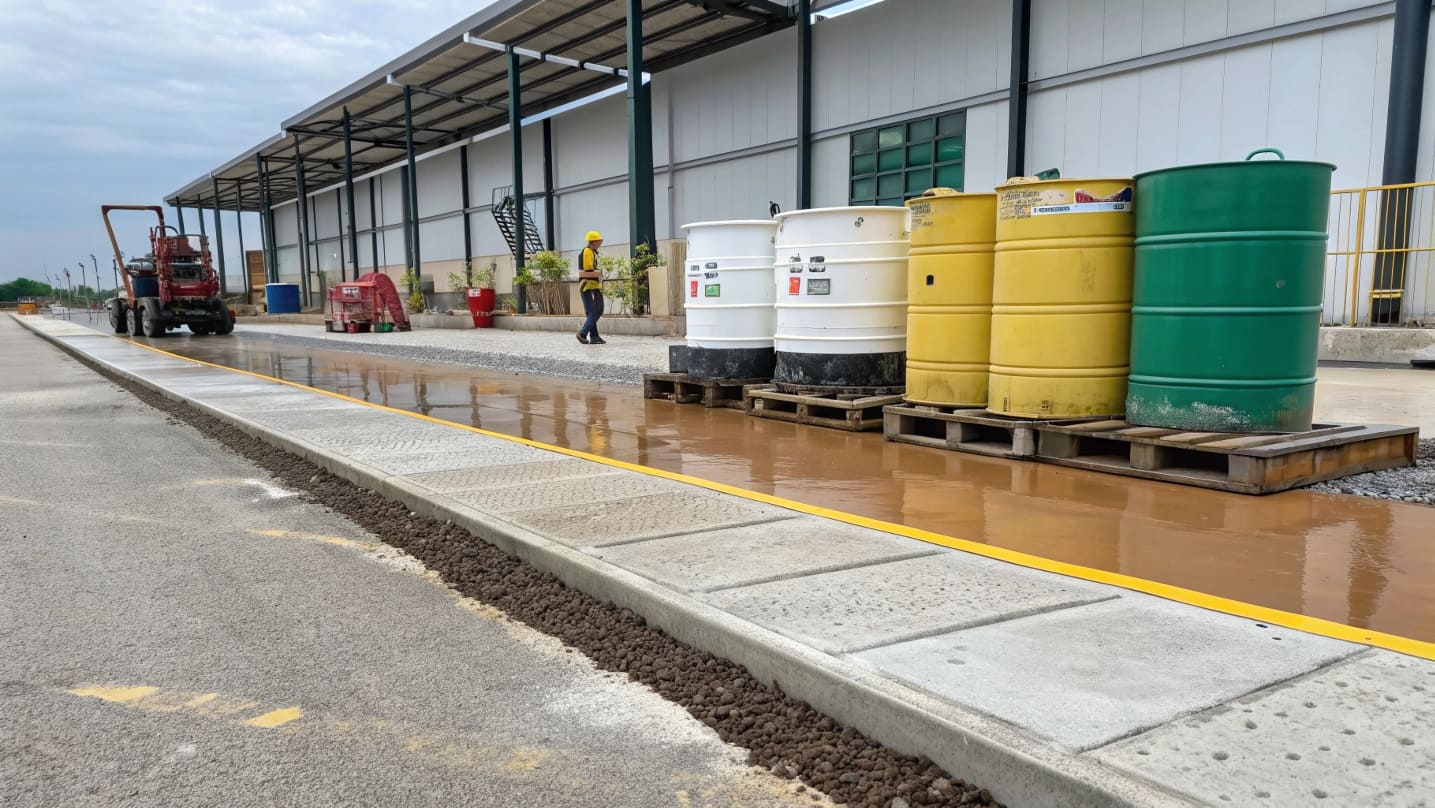

Different joint types and service conditions require specialized polyurea formulations to achieve optimal performance and durability.

Specialized polyurea systems include traffic-grade formulations for floor joints (shore D50-60 hardness), high-flexibility systems for expansion joints (400%+ elongation), chemical-resistant variants for industrial environments, self-leveling formulations for horizontal applications, and thixotropic formulations for vertical joints, each engineered for specific joint conditions.

Engineered Solutions: Matching Materials to Applications

At MPU Coatings, we’ve developed specialized polyurea formulations for different joint requirements:

1. Expansion Joint Systems

For joints designed to accommodate structural movement:

• High-Elongation Polyurea: Formulated with 400%+ elongation capacity
• Resilient Memory: Returns to original dimensions after repeated movement cycles
• Weather Resistant: Maintains flexibility in extreme temperature variations
• UV Stable: Aliphatic formulations that resist degradation from sun exposure
• Abrasion Resistant: Withstands surface wear while maintaining joint integrity

These systems excel in applications like parking structures, bridge expansion joints, and building perimeter joints where significant movement occurs. In a recent airport expansion project, our high-elongation system maintained integrity through over 500 thermal cycles without cohesive or adhesive failure.

2. Floor Joint Systems

For industrial and commercial floor applications:

• Traffic-Grade Formulations: Higher shore hardness (D50-60) to resist wheel loads
• Fast Return-to-Service: Typically operational within 1 hour of application
• Impact Resistant: Withstands point loading from dropped objects
• Sound Dampening: Reduces noise from equipment crossing joints
• Repairable: Can be refreshed or repaired without complete removal

These specialized systems are particularly valuable in manufacturing facilities, distribution centers, and cold storage facilities where conventional materials fail rapidly under heavy traffic and thermal shock conditions.

3. Chemical-Resistant Joint Systems

For industrial environments with chemical exposure:

• Enhanced Chemical Protection: Resists acids, bases, solvents, and process chemicals
• Impermeable Barrier: Prevents chemical migration into substrate
• Contamination Prevention: Non-leaching formulations safe for food processing areas
• Cleanability: Smooth surfaces that resist bacterial growth and are easy to sanitize
• Temperature Resistant: Maintains properties during steam cleaning and washdown procedures

In a chemical processing facility in Thailand, our specialized chemical-resistant joint system has protected concrete substrates from aggressive acid exposure for over five years without degradation, compared to monthly maintenance with conventional systems.

4. Waterproofing Joint Systems

For water containment and exclusion applications:

• Hydrostatic Pressure Resistance: Withstands both positive and negative water pressure
• Permanent Flexibility: Maintains watertight seal through substrate movement
• Root Resistance: For planters and green roof applications
• Potable Water Compatible: NSF/ANSI 61 compliant formulations for drinking water contact
• Microorganism Resistant: Resists degradation from microbial activity

These systems are crucial for applications like water treatment facilities, secondary containment areas, roofing details, and foundation joints where water intrusion must be prevented under challenging conditions.

5. Application-Specific Systems

For unique installation requirements:

• Self-Leveling Formulations: For horizontal joints requiring smooth finish
• Thixotropic Formulations: For vertical and overhead applications
• Hand-Mixable Systems: For small repairs and areas inaccessible to spray equipment
• Low-Odor Formulations: For interior applications in occupied buildings
• Low-Temperature Cure: For installations in cold climates or refrigerated areas

By matching specialized polyurea formulations to specific joint requirements, we achieve significantly extended service life and reduced lifecycle costs compared to generic "one-size-fits-all" approaches.

How Does Polyurea Transform Major Crack Repair Projects?

Beyond joint treatment, polyurea technology has revolutionized how we approach significant structural crack repairs in concrete and other substrates.

Polyurea transforms crack repair through its ability to penetrate deep into cracks while maintaining flexibility, its rapid cure time allowing for immediate structural integrity restoration, its waterproofing capabilities that prevent further water damage, and its structural reinforcement properties that distribute loads across the repaired area, all while minimizing facility downtime.

Structural Crack Remediation: Beyond Conventional Repair

In my extensive work with infrastructure rehabilitation, I’ve implemented polyurea-based crack repair techniques that offer significant advantages over traditional methods:

Injection Systems for Structural Cracks

Advanced polyurea injection achieves superior results:

1. Deep Penetration: Low-viscosity formulations travel deep into crack networks
2. Permanent Flexibility: Maintains integrity through ongoing structural movement
3. Moisture-Reactive: Many formulations utilize moisture to catalyze curing
4. Void-Filling: Expands to fill irregular crack geometries
5. Structural Bonding: Creates tensile strength across crack faces
6. Waterproofing: Prevents water migration through repaired areas
7. Durability: Resists deterioration from environmental exposure

The application process typically involves:

1. Surface cleaning and crack mapping
2. Installation of injection ports at strategic intervals
3. Surface sealing of crack with fast-setting material
4. Sequential injection of polyurea from bottom to top
5. Pressure monitoring to ensure complete fill
6. Removal of injection ports after cure
7. Final surface treatment if required

Case Study: Infrastructure Rehabilitation

A particularly challenging project involved a cracked concrete dam face in Malaysia that had defied multiple previous repair attempts using conventional epoxy injection. The structure exhibited:

• Active water seepage through multiple crack networks
• Continuous movement due to seasonal temperature variations
• Limited access for repair equipment
• Need for immediate return to service

Our solution utilized a specialized moisture-reactive polyurea system with these outcomes:

• Complete water stoppage achieved within 3 hours of application
• Crack network remained sealed through two full seasonal cycles
• Flexible repair accommodated ongoing structural movement
• Project completed in 60% of the time allocated for conventional methods
• No recurrence of leakage after 3 years of monitoring

This case demonstrates polyurea’s unique ability to succeed in crack repair scenarios where traditional materials consistently fail.

What are the Economic Benefits of Advanced Polyurea Joint Systems?

While advanced polyurea joint treatments typically have higher initial costs than conventional methods, their economic advantages become clear when analyzing total lifecycle costs.

Advanced polyurea joint systems deliver economic benefits through extended service life (15+ years vs. 2-5 years for traditional systems), reduced maintenance requirements (85% lower maintenance costs), minimized facility downtime (1-hour return to service vs. 24-72 hours), enhanced safety (reducing slip-and-fall incidents), and structural protection that prevents costly substrate damage.

Life-Cycle Cost Analysis: The True Economic Picture

Based on comprehensive project data collected across multiple industrial facilities, here’s how advanced polyurea joint treatments compare economically to traditional systems:

Initial vs. Lifecycle Costs

For a typical 100-meter industrial floor joint treatment:

Cost Factor	Traditional Urethane Sealant	Advanced Polyurea System
Initial Material Cost	$15-25 per meter	$35-55 per meter
Initial Labor Cost	$20-30 per meter	$25-40 per meter
Total Initial Cost	$35-55 per meter	$60-95 per meter
Service Life	2-5 years	15+ years
Replacements in 15 Years	3-7 replacements	None
Maintenance Cost (15 Years)	$105-385 per meter	$0-20 per meter
Downtime Cost Impact	High (multiple disruptions)	Minimal (single installation)
Total 15-Year Cost	$245-440 per meter	$60-115 per meter

This analysis reveals that despite higher initial costs, polyurea joint systems typically provide 60-75% reduction in total lifecycle costs when all factors are considered.

Operational Impact Factors

Beyond direct material and labor costs, several operational factors contribute to the economic advantage:

1. Facility Uptime: Rapid cure reduces facility downtime by 90-95% compared to traditional systems
2. Environmental Compliance: Lower VOC content reduces regulatory compliance costs
3. Energy Efficiency: Better sealing can improve building envelope performance
4. Equipment Damage: Reduced joint deterioration minimizes damage to material handling equipment
5. Safety Incidents: Smoother transitions reduce trip hazards and associated liability
6. Product Contamination: Intact joints prevent debris accumulation and cross-contamination in clean environments
7. Structural Protection: Prevention of substrate damage avoids costly structural repairs

Real-World Economic Impact

In a manufacturing facility in Singapore that implemented our polyurea joint system five years ago:

• Previous urethane sealant required replacement every 14 months at approximately $42,000 per event
• Facility downtime cost during replacement: approximately $35,000 per event
• Equipment damage from deteriorated joints: approximately $12,000 annually

After converting to an advanced polyurea system:

• Initial installation cost was 68% higher than traditional method ($70,500)
• No replacements required over 5-year period (saving 3 replacement cycles)
• Equipment repair costs reduced by 85%
• No production downtime for joint maintenance
• Calculated 5-year savings: approximately $240,000

These economic benefits have made advanced polyurea joint treatments the preferred solution for facilities focused on long-term operational efficiency and cost management.

How is Polyurea Technology Evolving for Future Joint Applications?

The field of polyurea joint treatment continues to advance, with several emerging technologies promising even better performance and sustainability.

Polyurea technology is evolving through bio-based formulations that reduce environmental footprint, self-healing variants containing microcapsules that repair minor damage automatically, smart polyureas that change properties in response to environmental conditions, nano-enhanced systems with improved durability, and hybrid systems combining multiple chemistries for optimized performance.

The Innovation Pipeline: Next-Generation Joint Protection

At MPU Coatings, our research and development team is working on several breakthrough technologies:

1. Bio-Based Polyurea Systems

Sustainability-focused innovations include:

• Formulations incorporating up to 40% bio-derived content⁷
• Reduced carbon footprint manufacturing processes
• Elimination of hazardous raw materials
• Improved end-of-life recyclability
• Maintained performance specifications despite greener chemistry

These eco-friendly alternatives address growing sustainability requirements without compromising the exceptional performance that makes polyurea systems valuable.

2. Self-Healing Formulations

Perhaps the most exciting development is the emergence of self-healing polyurea systems⁸:

• Microencapsulated healing agents that release upon crack formation
• Reversible polymer networks that reconnect after being damaged
• Phase-change materials that flow into damaged areas
• UV-activated repair mechanisms for exposed applications
• Multi-stage healing processes for progressive damage mitigation

In laboratory testing, these systems have demonstrated the ability to repair microfractures up to 0.7mm width without human intervention, potentially doubling service life in high-stress applications.

3. Smart Responsive Systems

Intelligent formulations that adapt to environmental conditions:

• Temperature-responsive systems that adjust flexibility seasonally
• Pressure-adaptive materials that stiffen under load
• Electrically conductive formulations for monitoring and heating
• Optical response indicators that signal stress or damage
• Chemical-responsive variants that indicate exposure to specific substances

These smart materials provide both protection and valuable data about joint conditions, enabling predictive maintenance rather than reactive repairs.

4. Nano-Enhanced Polyurea

Incorporation of nanomaterials creates extraordinary properties:

• Graphene-infused systems with exceptional tear resistance
• Nano-silica for improved abrasion resistance
• Carbon nanotubes for thermal conductivity and strength
• Nano-clay for enhanced chemical resistance and barrier properties
• Anti-microbial nanoparticles for hygienic applications

These nano-composites achieve performance levels impossible with conventional polymer chemistry alone, opening new application possibilities in extreme environments.

5. Hybrid Systems

Combining polyurea with complementary technologies:

• Polyurea-silicone hybrids for exceptional weatherability
• Polyurea-polyaspartic systems with extended working time but rapid final cure
• Polyurethane-polyurea combinations for optimized elasticity profiles
• Epoxy-polyurea systems for enhanced adhesion to difficult substrates
• Multi-layer systems with graduated properties through the joint profile

These hybrid approaches allow customization of performance characteristics to specific project requirements, overcoming the limitations of single-chemistry systems.

Conclusion

Advanced polyurea joint treatment and crack repair technologies represent a significant leap forward in concrete protection and structural maintenance. Their exceptional physical properties, application versatility, and economic advantages make them the preferred solution for demanding joint applications across industrial, commercial, and infrastructure settings. As the technology continues to evolve with bio-based formulations, self-healing capabilities, and smart responses, the performance gap between polyurea systems and traditional methods will only widen further. For facility owners and managers focused on long-term performance and reduced lifecycle costs, advanced polyurea joint systems offer unmatched value and reliability.

---

External Links
